Hypnotek Nexus DALI Master Controller – Smart Mini Panel Series

Modern lighting systems require more than simple on/off control. They need to provide flexible scene management, precise dimming, color control, and intelligent scheduling—all while remaining easy to operate and integrate into different spaces. As part of the Hypnotek Smart Mini Panel Series, the Nexis2 combines a 4-inch LCD touchscreen with DALI lighting control capabilities in a compact wall-mounted panel. Designed as a DALI Master Controller and DALI Central Control Screen, Nexis2 provides centralized control for up to 64 DALI devices, supporting multiple lighting modes, scene management, group control, and 24-hour circadian scheduling.

Enquiry

1.Compact Design with Powerful DALI Control

Nexus is designed to deliver professional lighting control without taking up unnecessary wall space. Measuring only 86.5 × 86.5 × 40.7 mm, its compact form makes it suitable for modern commercial, hospitality, residential, and smart building environments. As a DALI Master Controller,Nexus supports automatic addressing for up to 64 DALI devices, helping simplify device configuration and centralized lighting management. This provides a practical solution for projects that require multiple lighting fixtures to be managed from a single control point. Key Benefits: DALI Master Controller Automatic addressing for up to 64 DALI devices Compact 86.5 × 86.5 × 40.7 mm design Centralized lighting management

2. One Panel for Multiple Lighting Control Modes

Nexus supports a wide range of lighting control modes to meet different project requirements. Users can adjust lighting according to the application, atmosphere, or time of day through a centralized interface. The system supports Dim, CCT, XY, RGBWA, and SW control modes, providing flexibility for both functional and decorative lighting applications. From brightness adjustment and color temperature control to advanced color management, Nexus helps create more adaptable lighting environments. Supported Control Modes: Dim – Precise brightness adjustment CCT – Color temperature control XY – Color coordinate control RGBWA – Multi-channel color control SW – Switching control

3. Smart Scenes, Groups & 24-Hour Circadian Timer

Beyond individual lighting control, Nexus provides intelligent scene and group management. Users can configure up to 16 scenes and groups, making it easier to create predefined lighting environments for different activities and spaces. The built-in 24-hour Circadian Timer further enhances the system by supporting scheduled lighting changes throughout the day. This allows lighting conditions to be coordinated with daily routines, helping create dynamic and comfortable environments for offices, hospitality spaces, residences, and other smart building applications. Smart Features: Up to 16 scenes and groups 24-hour Circadian Timer Scheduled lighting control Centralized scene management

4. Designed for Modern Smart Lighting Applications

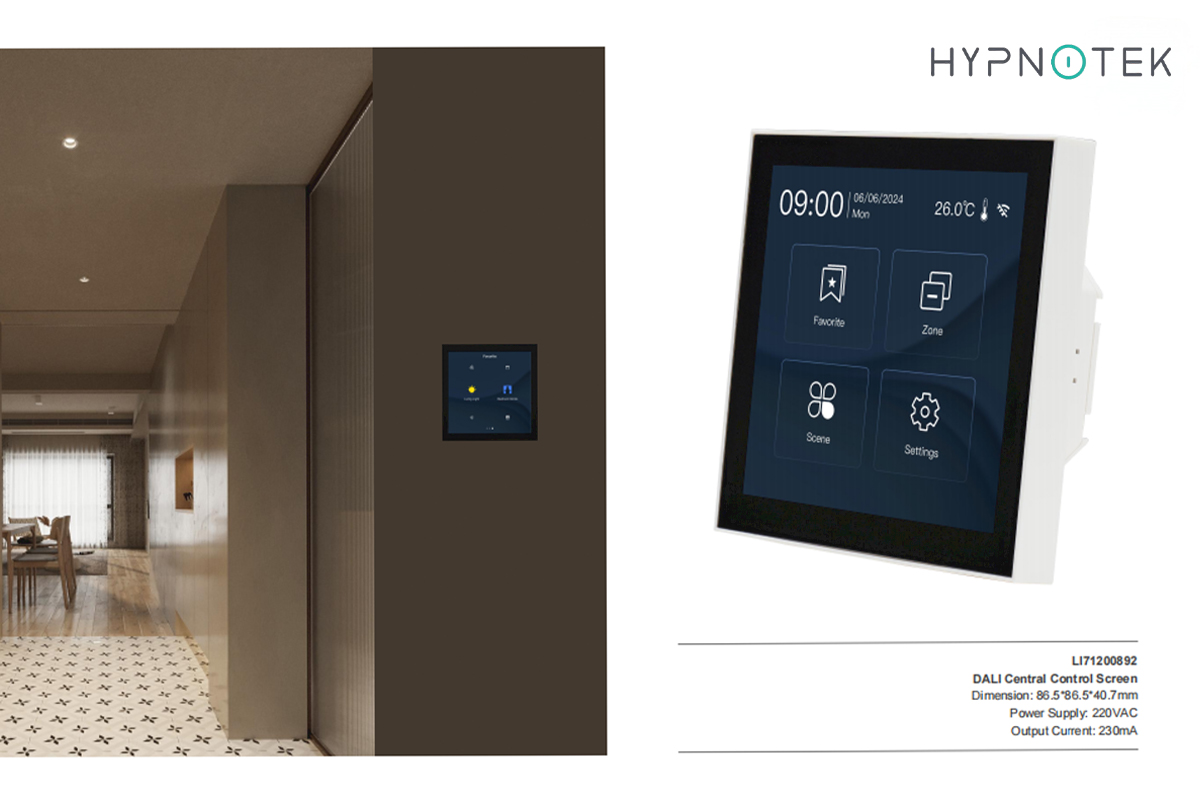

With its combination of a 4-inch LCD display, DALI control, multiple lighting modes, scene management, and intelligent scheduling, Nexus provides a compact yet capable solution for modern lighting control systems. Powered by 220VAC with an output current of 230mA, Nexus is designed to integrate into professional lighting control environments while maintaining a clean and minimal appearance. Its compact size and versatile control functions make Nexus suitable for a variety of applications, including smart homes, hotels, offices, commercial spaces, hospitality projects, and other intelligent lighting environments. Hypnotek Nexus brings DALI lighting control, intelligent scheduling, and flexible scene management together in one compact smart panel—providing a practical control solution for today's connected lighting environments.

Model No.

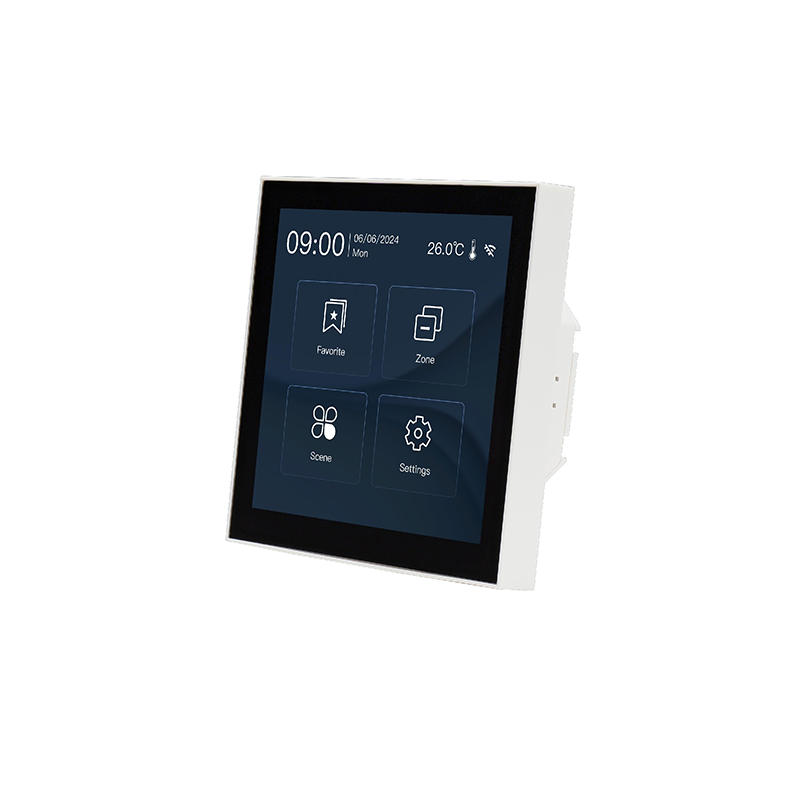

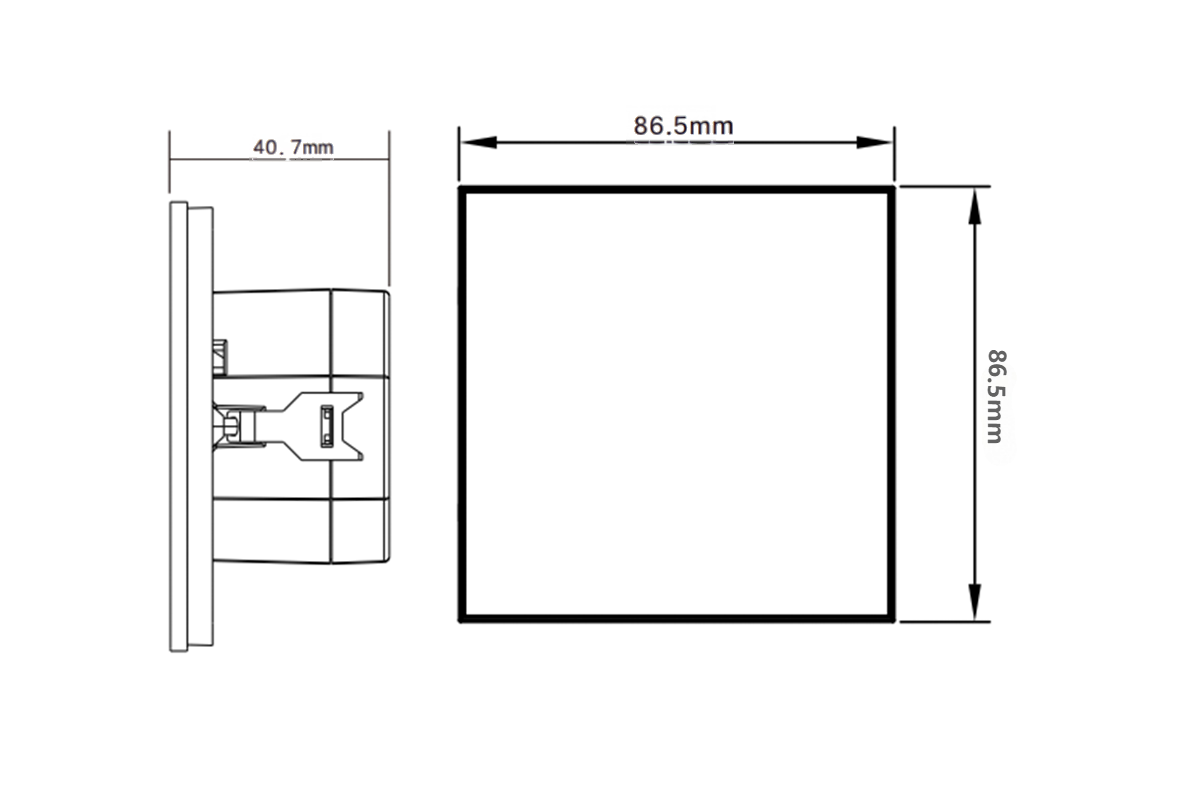

Nexus 86.5 × 86.5 × 40.7 mm

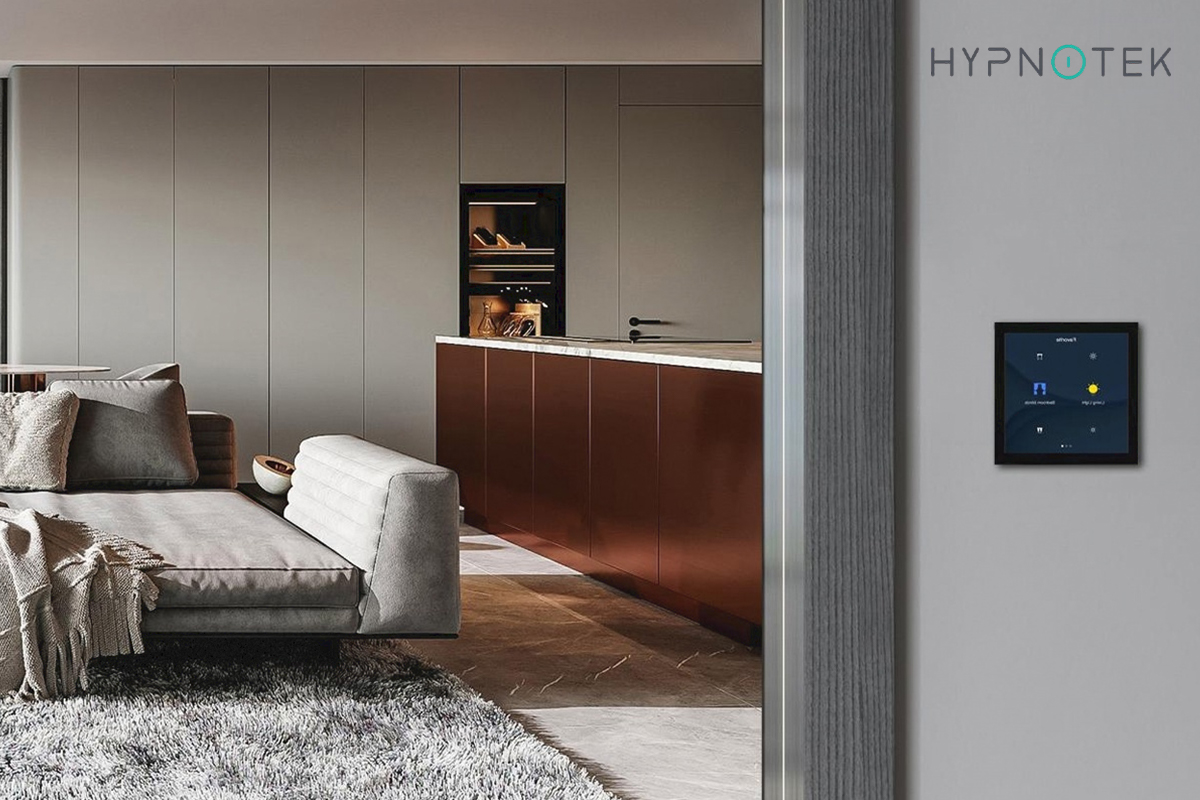

Touch Panel Controller for Smart Home Systems

deal for residential spaces, the DALI Master Controller Touch Panel allows homeowners to create customized lighting settings that can be adjusted with ease. Manage the lighting in different rooms, create ambient lighting scenes for different occasions, and integrate other smart devices for a seamless home automation experience.

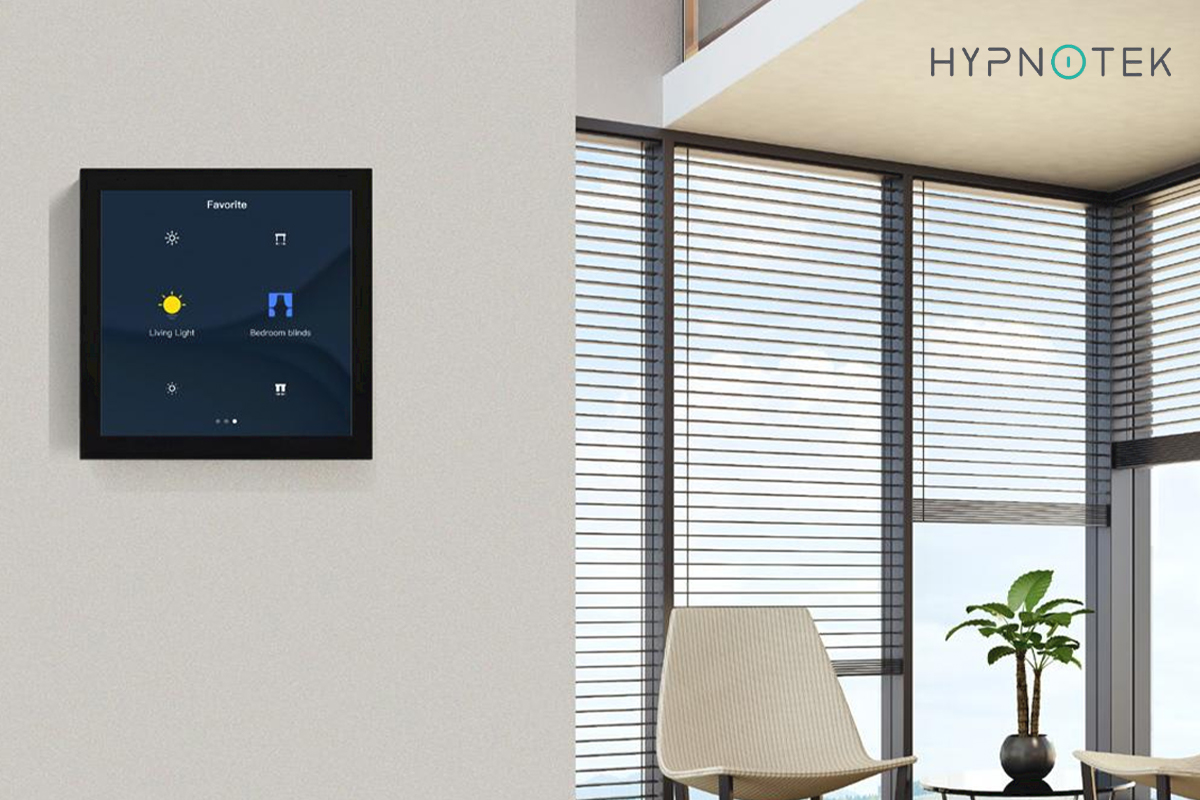

Commercial Smart Panel Controller

For retail environments and hotels, the DALI Master Controller Touch Panel provides a reliable and efficient solution for managing lighting across large spaces. Control lighting levels in individual areas or across the entire building, create welcoming atmospheres for customers, and ensure energy efficiency through automated lighting scenes.
